Solder Paste Mixing Equipment

Double planetary homogenous mixer

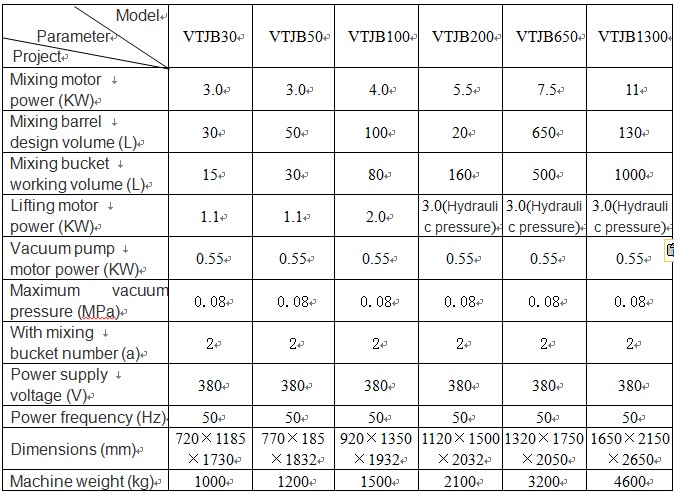

1. Parameters:

2.D
escription:

The double planetary mixer is a set of reactions, mixing, kneading homogenizing into one versatile and efficient products, widely used in battery paste, medicine cream, cosmetic cream, paste food, electronics solder paste and other body kinds of paste, slurry stirred.

This series of double planetary mixer is from the upper beam, the plane seat, square column, lifting mechanism, lifts and straight track, on the barrel, mixing bucket, vacuum pump, buffer tank, transmission, electric control cabinet and operation panel other components

A stirring tank: two-layer structure, barrel body jacket, inside and outside lamps with 304 # stainless steel, jacketed spoiler, bottom of the barrel jacket, bottom of the barrel pulleys 4, barrel body with handles. After turning deflector jacket, uniform cooling of the cooling water barrel materials, ensure that the material process temperature uniformity. The flange surface and the barrel inner face by turning to ensure that the tube wall and the gap is in two-cage small range, so that all the materials are thoroughly stirred barrel.

2 throwing cage: There are two specially designed stainless steel precision casting curve modeling stir cage, the cage rotates between the two regions staggered stir in the double planetary transmission driven by two throwing cage with the carrier for both the revolution, while for each rotation, so that the barrel material is sufficiently stirred.

3 on the barrel: the barrel is 304 stainless steel, is a component of the seal chamber, on a vacuum line and vacuum gauge, illuminated windows, observation window.

4 Transmission: planetary gear transmission principle, to achieve two throwing cage and carrier to 0-50RPM speed of revolution at the same time, each for speed 0-100RPM rotation. Transmission system adopts inverter control revolution and rotation speed.

5 Vacuum system: mixing drum with the barrel between the barrel and frame between the drive shaft and frame are made between the seal design, dynamic seal with mechanical seals, static seals with silicone rubber O- pieces. Vacuum pump rotary vane vacuum pump, so that the barrel material in a vacuum environment to achieve mixing, mixing of materials to meet specific process requirements.

6 Lift system: screw jacks, lifts, linear guide components for conveying mixing bucket lift, easy mixing, filling and discharge.

7 Control system: stirring speed controlled by frequency conversion; mixing bucket with planet carrier rotates together with the thermocouple temperature measurement means for controlling the temperature of the barrel material; mixing bucket positioning, up, down both proximity switch control and a safety interlock logic control, a safe sound and light alarm.
